IC 15/12

Features

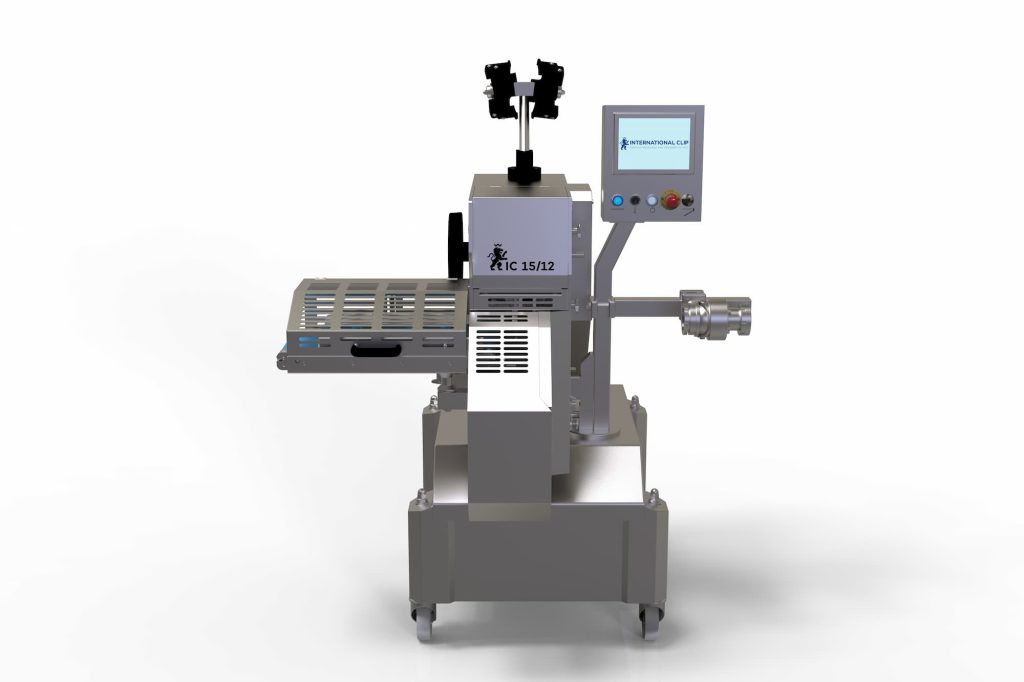

The IC 15/12 “2.0”, is the new high speed Clipper from International Clip, able to develop a production rate of more than 180 portions per minute with the maximum reliability thanks to the solid STAINLESS STEEL construction, created for working the 15 and 12 series clip, maintaining the maximum reliability and simplicity in usage of the IC 15/12 with several “NEWS”:

  • Four rotating wheels for easy handling in the factory
  • Ergonomic adjustments
  • Centralized external greasing point
  • Pneumatic Opening and Closing as standard
  • Display in STAINLESS STEEL certified FDA (IP67) Schneider Electric
  • New design and frame in STAINLESS STEEL
  • Electric board isolated in an extractable stainless steel box
  • New modular conveyor belt (certified FDA) with pneumatic or electric motor

The IC 15/12 is the best choice for sausages of small and medium size, there for all over the world the performance of the IC 15/12 is appreciated for the production of spreadable Cheese, bites of Salami, mini Pâté and Sucuk.

The IC 15/12 Clipper can be equipped with many additional accessories, like the Loop Inserter, String dispenser, pneumatic Casing Brake, Parallel Revolver (for quick casing stick change) and many more to meet any requirements in application and also in personalization.

Technical Data

Diameter: 20mm – 90mm (110mm thin plastic casings)

Cycles: over 180/min.

Air pressure: 6 – 7 bar

Power: 400V a 50/60Hz

Weight: 500kg

Clip range: serie 15 – serie 12
